Adaptive Multigrid
This page documents developments on the design and implementation of an adaptive multigrid solver that allows for the efficient solution of Poissonlike systems of equations, discretized over an quad/octtree.
This material is based upon work supported by the National Science Foundation under Grant No. 1422325:
 Title: III: CGV: Small: Designing an Adaptive Method for Solving Large Linear Systems of Equations in Two and ThreeDimensional Space
 PI: Michael Kazhdan
 Duration: 09/2014  08/2020
 Students:
 Fabian Prada (Graduated with PhD in December 2018)
 Sing Chun Lee
Goals and Challenges
In numerous fields, ranging from image processing to scientific simulation, solving a large Poisson system is an essential step in integrating locally defined properties into a consistent global solution. Though the linear system is global (with properties at one point in space affecting the solution at points far away), in many cases the details of the solution are only required at particular locations. As a result, computational effort expended on estimating the details of the solution away from these regions of interest is wasted. The proposed research seeks to design, implement, and make publicly available a new solver for addressing this problem  providing a way to adapt traditional hierarchical solvers so that computation is only focused where it is needed.
The motivation for this approach stems from the fact that in solving a Poisson equation, longdistance effects are dominated by lower frequencies, so highresolution components of the solution need only be computed in regions of interest. Using experiences from prior work in surface reconstruction and large image processing, the PI will explore a modification of traditional multigrid, providing a hierarchical solver even when the function spaces do not nest. To do this the multigrid solver will be modified in two ways. First, to compensate for the fact that the coarser solution cannot be upsampled to the finer resolutions, the solution of the linear system will be represented as a linear combination of functions at all levels of the hierarchy, not just the finest one. Second, instead of using traditional restriction and prolongation operators to transition between successive levels of the hierarchy, the solver will proceed by iterating through the levels of the hierarchy (finetocoarse and then coarsetofine as in a typical V or Wcycle), relaxing the system within each level, and adjusting the constraints at the other levels, accounting for the components of the solution that have already been met. (For example, in the prolongation phase, the coarser solution will be incorporated into the finer levels by adjusting the righthandside, rather than updating the current estimate of the solution.) The research will explore both the general design of such a system, as well as domainspecific implementations that facilitate its integration in targeted scientific and entertainment disciplines. Results will be made publicly available in the form C/C++ source code for constructing adapted quadtrees/octrees, formulating the system constraints, and evaluating the computed solution, as well as documentation and applicationspecific implementations.
Publications, Code, and Presentations
 Accurate Isosurface Interpolation with Hermite Data: [3D Vision, 2015], Code
 Gradient Domain for Color Correction in Large EM Stacks: [ArXiv, 2015], Code
 Fast and Exact (Poisson) Solvers on Symmetric Geometries: [SGP, 2015], Code, Presentation
 Motion Graphs for Unstructured Textured Meshes: [SIGGRAPH, 2016], Code, Presentation
 FieldAligned Online Surface Reconstruction: [SIGGRAPH, 2017], Code
 Spatiotemporal Atlas Parameterization for Evolving Meshes: [SIGGRAPH, 2017]
 An Adaptive Multigrid Solver for Applications in Computer Graphics: [CGF, 2018], Code
 GradientDomain Processing within a Texture Atlas: [SIGGRAPH, 2018], Code
 Möbius Registration: [SGP, 2018], Code
 Dense PointtoPoint Correspondences Between GenusZero Shapes: [SGP, 2019], Code
 Poisson Surface Reconstruction with Boundary Constraints: [SGP, 2020], Code
Direct Results
Initial research focuses on extending the cascadic solver used in Poisson Surface Reconstruction. This includes:
 [Version 7.0] Extending the support for function representation/evaluation using the secondorder Bspline basis. (This has been used to provide color intepolation support in the context of surface reconstruction.)

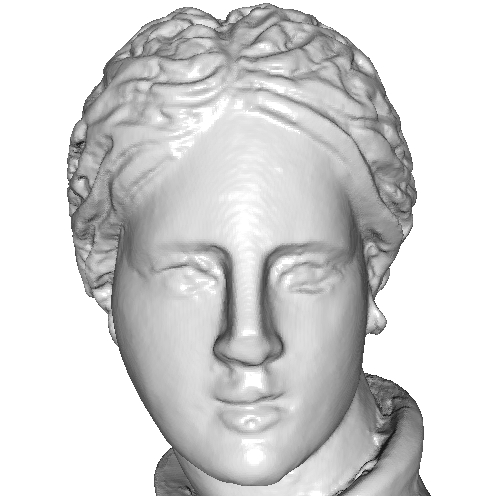

Geometry

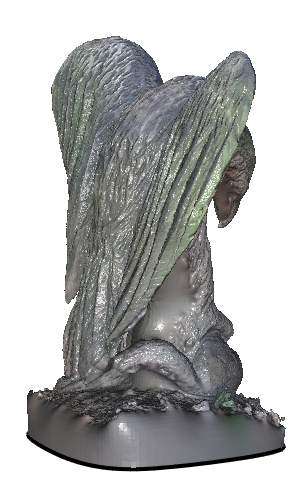

 Geometry + Color

Notes:
 For performing color interpolation, we "splat" the color values associated with a sample using a kernel whose width is inversely proportional to the sampling density and whose weight is proportional. This provides a color field that adapts to the sampling density and is defined without requiring an explicit solve.
 [Version 8.0] Extending the function representation to BSplines of different degrees. (This supports a parameterizable tradeoff between the accuracy of higher order elements and efficiency/sparsity of linear systems derived from lower order elements.)

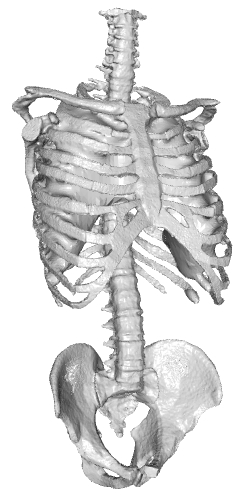

Degree: 1
 Degree: 2
 Degree: 3
 Degree: 4

Time: 3.7 s
 Time: 4.9 s
 Time: 9.6 s
 Time: 18.0 s

Memory: 75 MB
 Memory: 141 MB
 Memory: 374 MB
 Memory: 1016 MB

Triangles: 149 K
 Triangles: 148 K
 Triangles: 148 K
 Triangles: 148 K

Notes:
 The slightly choppier look of the degree1 reconstruction may be due to the fact that we cannot use a secondorder fit when the implicit function is represented using piecewise trilinear elements.
 Although the system is defined using degreed elements, the normal field is still represented using secondorder elements so that similar constraints are presented to all four systems, and results can be compared more fairly.
 [Version 9.0] Extending to higher order systems, supporting more general integral and interpolation constraints, and supporting additional boundary conditions. (This enables the implementation of the SSD reconstruction algorithm which uses a biLaplacian regularizer using our system, providing a more efficient a less memory intensive solution.)

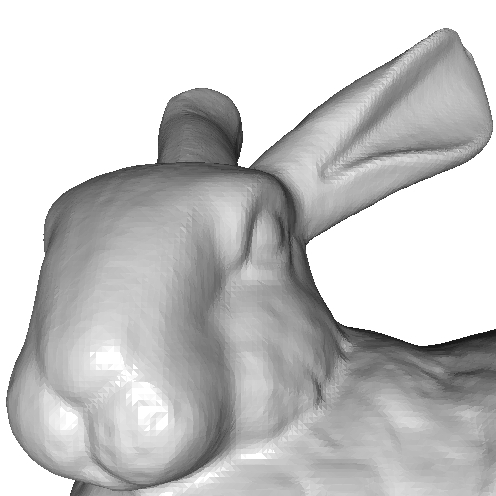

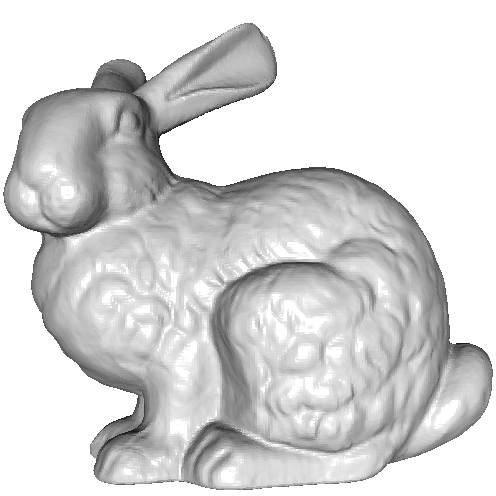

Poisson Reconstruction
 SSD Reconstruction (Calakli and Taubin)
 SSD Reconstruction (Ours)

Time: 110 s
 Time: 354 s
 Time: 92 s

Memory: 2120 MB
 Memory: 6011 MB
 Memory: 2225 MB

Triangles: 4.3 M
 Triangles: 4.0 M
 Triangles: 4.3 M

Notes:
 Our SSD implementation turns out to be slightly faster than our implementation of Poisson Reconstruction. This is because the constraints (excepting interpolation) are trivial and do not need to be computed explicitly.
 Initial evaluation indicates that our SSD reconstruction better reproduces some of the detail in the input. This is likely due to the manner in which default parameters are set.
 [Version 10.0] Extension of the cascadic solver to a support arbitrary degree finiteelements in arbitrary dimensions. This enables new applications including quadtreebased gradientdomain image stitching and estimation of the Euclidean Distance Transform using the Heat method.

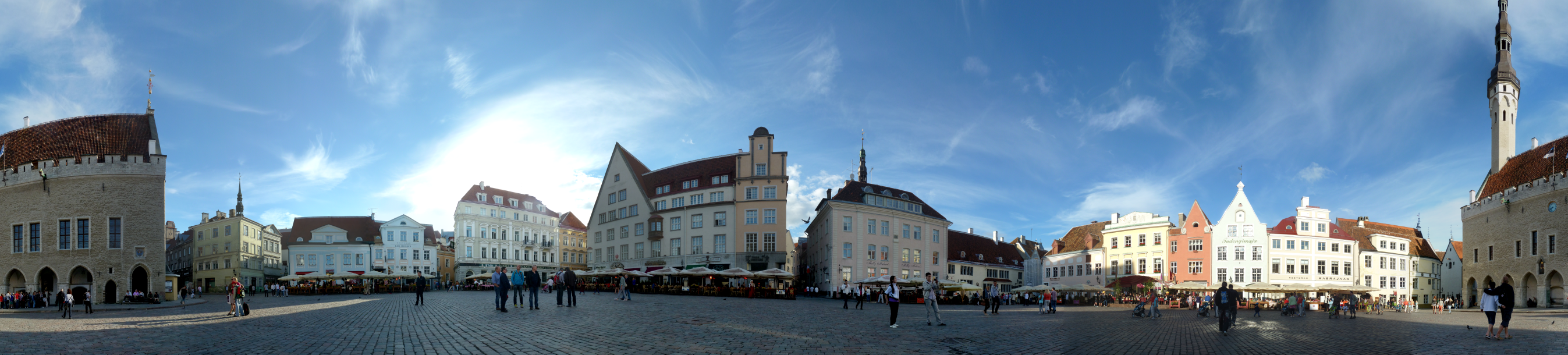

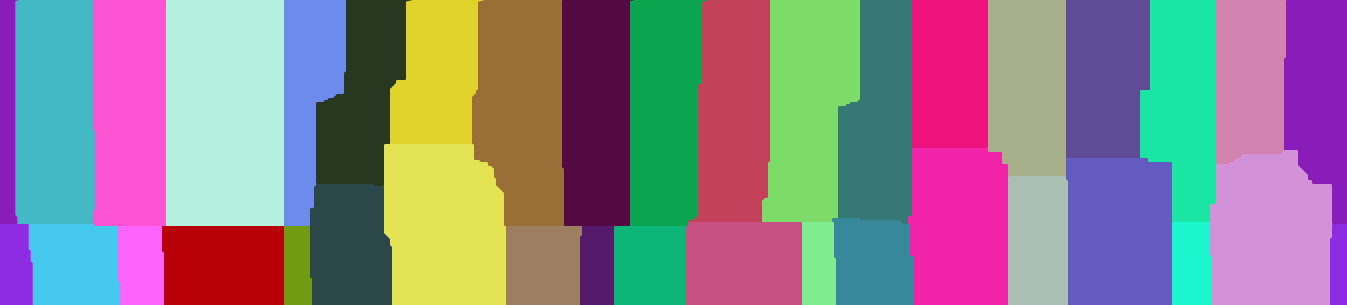

GradientDomain Stitching (Ours)
Input: 420 MP
Time: 47 s
Memory: 178 MB



EDT [Saito and Toriwaki, 1994]

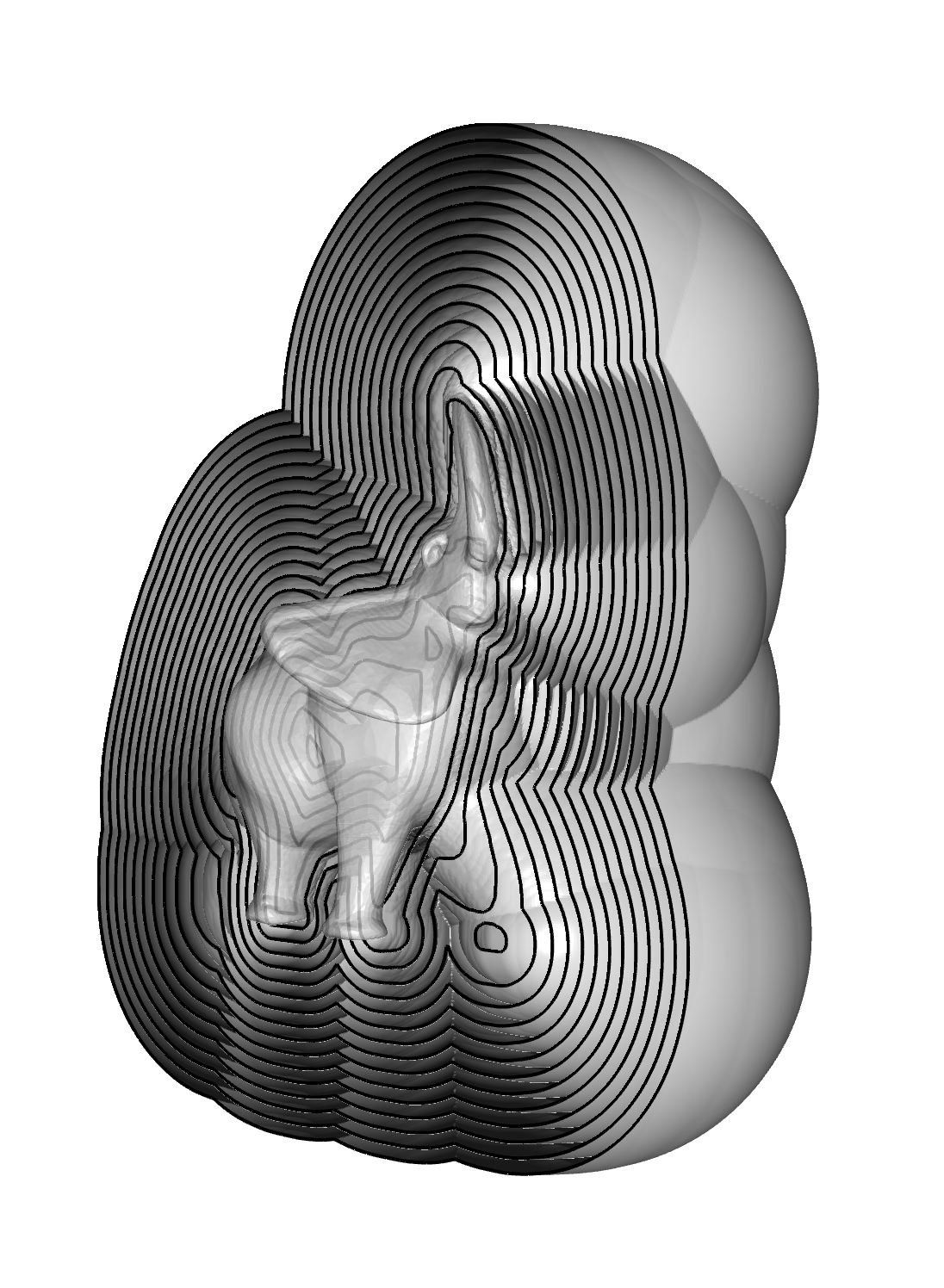

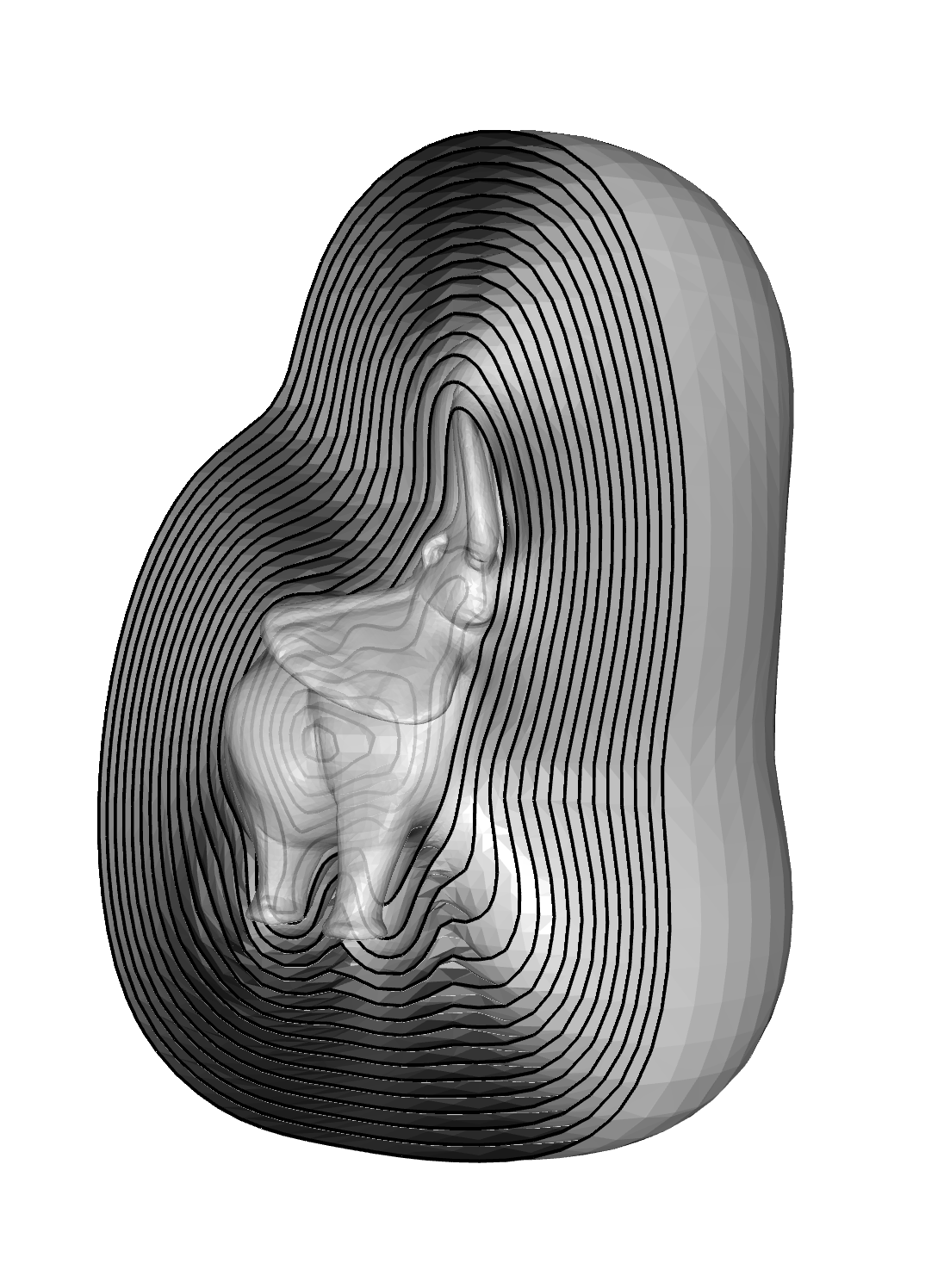

 EDT in Heat (Ours)

Time: 78 s
 Time: 14 s

Memory: 8196 MB
 Memory: 346 MB


 [Version 11.0] Extension of the surface reconstruction code to support the huge (i.e. larger than 2^32sized) point clouds arrising in geological datasets.
 [Version 12.0] Added support for scattered data (value and/or gradient) interpolation in arbitrary dimensions.
 [Version 13.0] Added the ability to constrain the reconstructed surface to be contained within a prescribed envelope by extending the linear solver to support Dirichlet boundary constraints.
  Input Samples  Constraint Envelope (Depth Hull)

  Reconstruction w/o Envelope

  Reconstruction w/ Envelope


Indirect Results
 Accurate Isosurface Interpolation with Hermite Data
 This work considers the use of nonlinear interpolants for isosurface extraction (applicable to both reguar grids and adapted octrees) by considering not only the values at the endpoints of an edge but also the gradients. This has been shown to be particular valuable for extracing highquality surfaces when the underlying implicit function fails to be linear near the isosurface (e.g. for indicator funcionts).
 Gradient Domain for Color Correction in Large EM Stacks
 This work considers the problem of performing gradient domain colorcorrection on huge (teravoxel) 3D EM data. The processing is decomposed into two phases: An initial smoothing pass to obtain a 3D dataset that is coherent along the zaxis, followed by independent 2D gradient domain fusion to obtain slices that preserve the highfrequency content of the input slices while exhibiting the coherence of the smoothed data. Separating the color correction into these two phases makes the approach trivially parallelizable and provides the space and timeefficiency required for processing large 3D volumes.
 Fast and Exact (Poisson) Solvers on Symmetric Geometries
 This work considers the problem of solving linear systems on geometries with symmetries. In particular, when the linear system commutes with the symmetry group, the decomposition of the function space into irreducible representations results in a blockdiagonalization of the matrix, replacing the solution of one large system with the solutions of many small ones. For Poisson equations on surfaces of revolution, the decomposition into irreducibles is obtained by computing a set of FFTs along the parallels of the surface, and the diagonal blcoks are tridiagonally banded so that they can be solved in linear time.
 Motion Graphs for Unstructured Textured Meshes
 This work explores extensions of the Poisson equation to applications in vectorfield design. Specifically, using the Laplacian of vectorfields as a regularizer, we design a hierarchial opticalflow solver for signals defined on surfaces that do not (directly) support a multiresolution representation in order to obtain a good (nonlocal) minimizer to the nonconvex and underconstrained optical flow probleem.
 FieldAligned Online Surface Reconstruction
 This work explores the localization of updates within a hierarchical solver. Applied to the context of surface reconstruction, this allows a user to incrementally add new scans to a 3D reconstruction in time that is proportional to the size of the newly added scan, and independent of the overall size of the model. This, in turn, enables the design of an onthefly surface reconstruction system that interactively displays the reconstruction from the current scans and guides the user in choosing locations/orientations for subsequent scans.
 Spatiotemporal Atlas Parameterization for Evolving Meshes
 This work continues the work on "Motion Graphs", leveraging the optical flow solver to refine registration between two surfaces by using the optical flow of textures to constrain the tangential motion of the surface deformation.
 GradientDomain Processing within a Texture Atlas
 This work considers the problem of performing signalprocessing on surfaces by performing gradientdomain processing directly in the texture domain. Defining a seamless and metricaware finiteelements system, we show that it possibly to leverage the regularity of the texture domain to design a multigrid solver that supports processing signals over curved geometries at interactive rates.
 Möbius Registration
 This work considers the problem of finding the Möbius registration that best registers two conformal spherical parametrizations. Factoring the group of Möbius transformations into inversions and rotations, we show that individual conformal parametrizations can be cannonically centered with respect to inversions and pairs of conformal parametrizations can be optimally rotationally aligned by leveraging fast signal processing over the sphere and the group of rotations.
 Dense PointtoPoint Correspondences Between GenusZero Shapes
 Leveraging our earlier work on Möbius Registration, this work addresses the problem establishing correspondences between similar genuszero shapes when the deformation taking one shape into the other is not necessarily an isometry. Starting with optimal Möbius alignment, we refine the registration using a novel, efficient, hierarchical, spherical optical flow implementation. Taken in conjunction with a novel flow that transforms the conformal parametrizations into authalic parametrizations, we obtain correspondences that are competitive with stateoftheart techniques.
